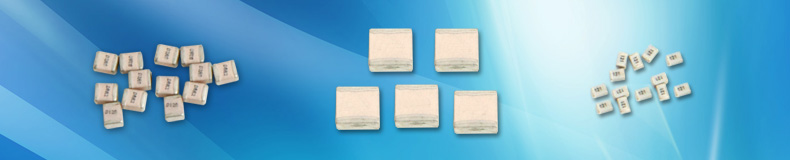

Chip Ceramic Capacitor
Microelectronics Components > Passive > capacitance
Mo-Tech offers Multi-layer Ceramic Capacitor(NPO) with high Q
Capacitance, high power and Low ESR, Range from 0.1pF to 10000pF,
working under temperature range -55 ℃ to +125 ℃ and frequency range up
to 70G; There are 70 series and 75 series separately offered in
commercial and MIL-standard, see below details .Beside,we offer Design
tool kits and Testing Sticks for customers' R&D requirement
 | YXC70 Series Product Features High Q, High Power, Low ESR/ESL, Low Noise, High Self-Resonance, High Availability. Product Applications Typical functional applications: Bypass, Coupling, Tuning, Feedback, Impedance Matching and D.C. Blocking. Typical circuit applications: MF/HF/VHF/UHF/Microwave/RF Amplifiers, Mixers, Oscillators, Low Noise Amplifiers, Filter Networks, Timing Circuits and Delay Lines. Typical applications field: Wireless Broadcasting Equipment, Mobile Base Stations, GPS Portables, Medical (MRI coils), Radar. |
 | YXC70A Series Product Features High Q, High Power, Low ESR/ESL, Low Noise, High Self-Resonance, Ultra- Stable Performance. Product Application Typical functional applications: Bypass,Coupling, Tuning, Feedback, Impedance Matching and D.C. Blocking. Typical circuit applications: Microwave/RF/MF Amplifiers, Mixers, Oscillators, Low Noise Amplifiers,Filter Networks, Timing Circuits and Delay Lines. |
 | Product Features High Q, High Power, Low ESR/ESL, Low Noise, High Self-Resonance, Ultra- Stable Performance.
Product Application Typical functional applications: Bypass,Coupling, Tuning, Feedback, Impedance Matching and D.C. Blocking.
Typical
circuit applications: Microwave/RF/MF Amplifiers, Mixers, Oscillators,
Low Noise Amplifiers,Filter Networks, Timing Circuits and Delay Lines. |
 | YXC70C Series Product Features High Q, High RF Current/Voltage, High RF Power, Low ESR/ESL, High Availability. Product Application Typical functional applications: Bypass, Coupling, Tuning, Impedance Matching and D.C. Blocking. Typical circuit applications: VHF/UHF RF Power Amplifiers, Antenna Tuning, Plasma Chambers. |
 | YXC70D Series
Product Features High Q, High Power, Low ESR/ESL, Low noise,High Self-Resonance,Ultra-Stable Performance Product Application Typical functional applications: Bypass, Coupling, Tuning, Filter Networks,Matching Networks Typical circuit applications: Broadband wireless service,GPS portables |
 | YXC70E Series Product Features High Q, High RF Current/Voltage, High RF Power, Low ESR/ESL, Low noise,Ultra-Stable Performance Product Application Typical functional applications: Bypass, Coupling, Tuning, Impedance Matching and D.C. Blocking. Typical circuit applications: VHF/UHF RF Power Amplifiers, Antenna Tuning, Plasma Chambers and Medical(MRI coils) |
 | YXC70F Series Product Features
High Q, High RF Current/Voltage, High RF Power, Low ESR/ESL, Low noise,Ultra-Stable Performance
Product Application Typical functional applications: Bypass, Coupling, Tuning,Feedback,Impedance Matching and D.C. Blocking. Typical
applications field: HF/VHF RF Power Amplifiers,RF Induction
Heating,Broadcast Transmitter,Military Radios,Antenna Tuning,Plasma
Chambers and Medical(MRI coils) |
 | YXC70G Series Product Features
High Q, High RF Current/Voltage, High RF Power, Low ESR/ESL, Low noise,Ultra-Stable Performance
Product Application Typical functional applications: Bypass, Coupling, Tuning,Feedback,Impedance Matching and D.C. Blocking.
Typical
applications field: HF/VHF RF Power Amplifiers,RF Induction
Heating,Broadcast Transmitter,Military Radios,Antenna Tuning,Plasma
Chambers and Medical(MRI coils) |
 | YXC75 Series
Product Features High Q, High Power, Low ESR/ESL, Low Noise, High Self-Resonance, High Availability. Product Applications Typical functional applications: Bypass, Coupling, Tuning, Feedback, Impedance Matching and D.C. Blocking. Typical circuit applications: MF/HF/VHF/UHF/Microwave/RF Amplifiers, Mixers, Oscillators, Low Noise Amplifiers, Filter Networks, Timing Circuits and Delay Lines. Typical applications field: Wireless Broadcasting Equipment, Mobile Base Stations, GPS Portables, Medical (MRI coils), Radar. |
| YXC75B Series Rated Capacitance Table Remark: special capacitance, tolerance and WVDC are available, |
